"All in One" intercom-sized emergency call device.
Additional details
- The prerequisite is that there is cellular reception along the entire route.
- Can be checked with our Android app EasyConfig and the data cable (L444) available from us free of charge.
The device supports the following wireless technologies:
- 4G: GSM, UTMS, LTE/VoLTE
- 3G: GSM, UTMS
- 2G: GSM

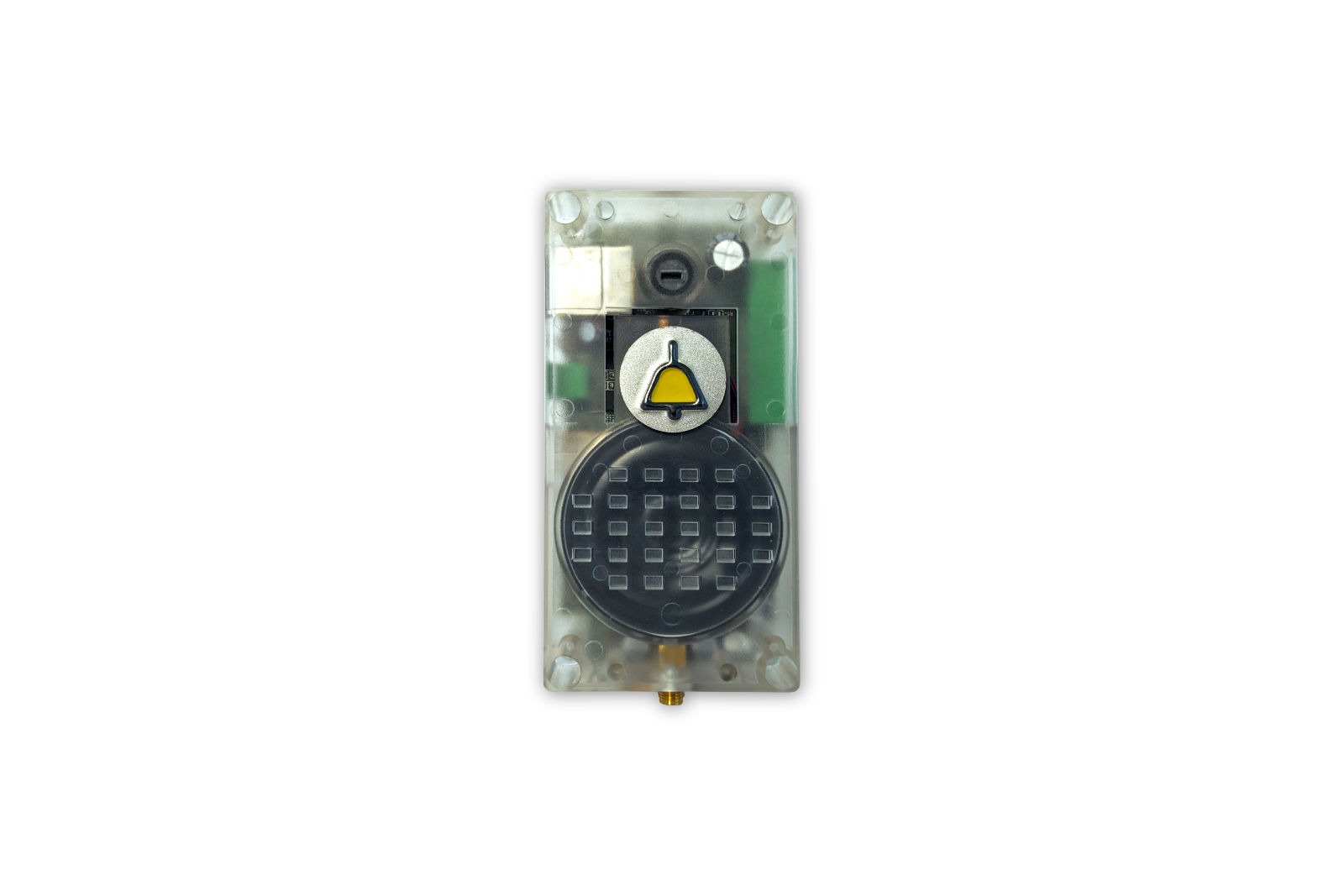

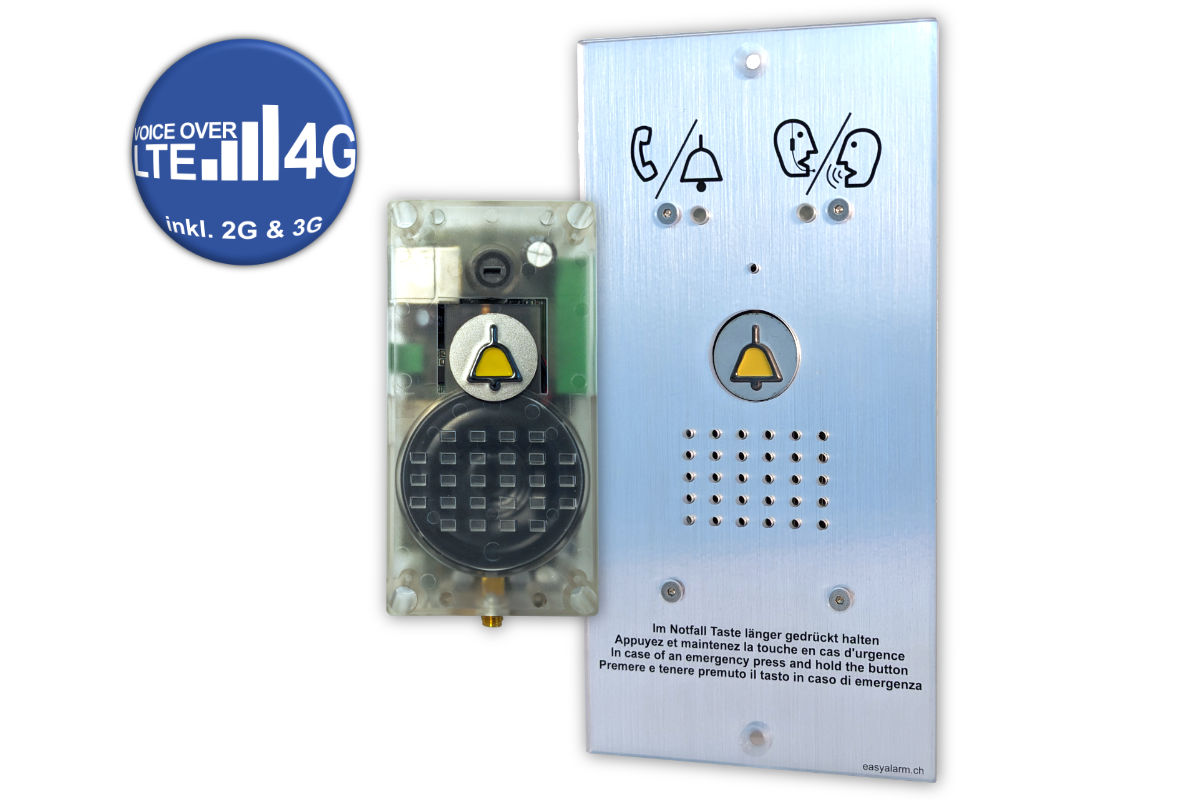

PICO: the digital 4G / VoLTE "All in One" emergency call Device
Current technology in intercom station sizeThe new emergency call device complies with EN81-28 and has the mobile radio section integrated in a single unit with an extremely compact design. This predestines the use of the PICO emergency call device especially in staircases and outdoor lifts.
The PICO is also ideal for use as an emergency call device in cable cars / mountain railroads and funicular railroads.
The fully digital PICO is small and has integrated 4G / VoLTE despite its small dimensions. The voice quality has been further improved as well as the power consumption reduced. The Pico has connection options for external emergency contacts, intercom stations, abuse suppression, Internet lift tracer and Android phones with the Leitronic EasyConfig app for reception optimization.
Support for the following networks
- 4G: GSM, UTMS, LTE/VoLTE
- 3G: GSM, UTMS
- 2G: GSM
Standards
- EN81-28
Dimensions and weight
- 114 x 58 x 21mm (L x W x H). Width with plug 74mm
- 95g
Supply voltage
- 8.35 V DC
Other
- Integrated emergency call button
- Input for emergency call button
- Abuse suppression
- Indicator lights according to EN81-70 (yellow/green): internal with LED / light guide,
external with light symbols (open-collector outputs)
