Easy and quick to install elevator emergency call system. Occupies only 2 wires of the traveling cable.
Complies with EN81-28 and EN81-70 standards.
Additional details
0
IP-Version 4G / VoLTE | Order no: 100.080XBL |
DIN-Version 4G / VoLTE | Order no: 100.081XBL |
You can read the difference between the IP and the DIN version under the specifications tab
From 2024, all NANO systems will be delivered with the EA-LTE-DUAL
The new DUAL is fully compatible with Gateway and Nano installations and offers a wide range of additional functions.
Leitronic System NANO
With only two wires in the pendant cable, the Nano intercom station is connected to the cellular receiver box.Fulfills EN81-28 and EN81-70 standards.
The emergency call or elevator emergency call via the mobile network is a cost-effective and efficient alternative to the fixed network.
A change of provider is possible at any time. The elevator can already be operated during the construction phase.

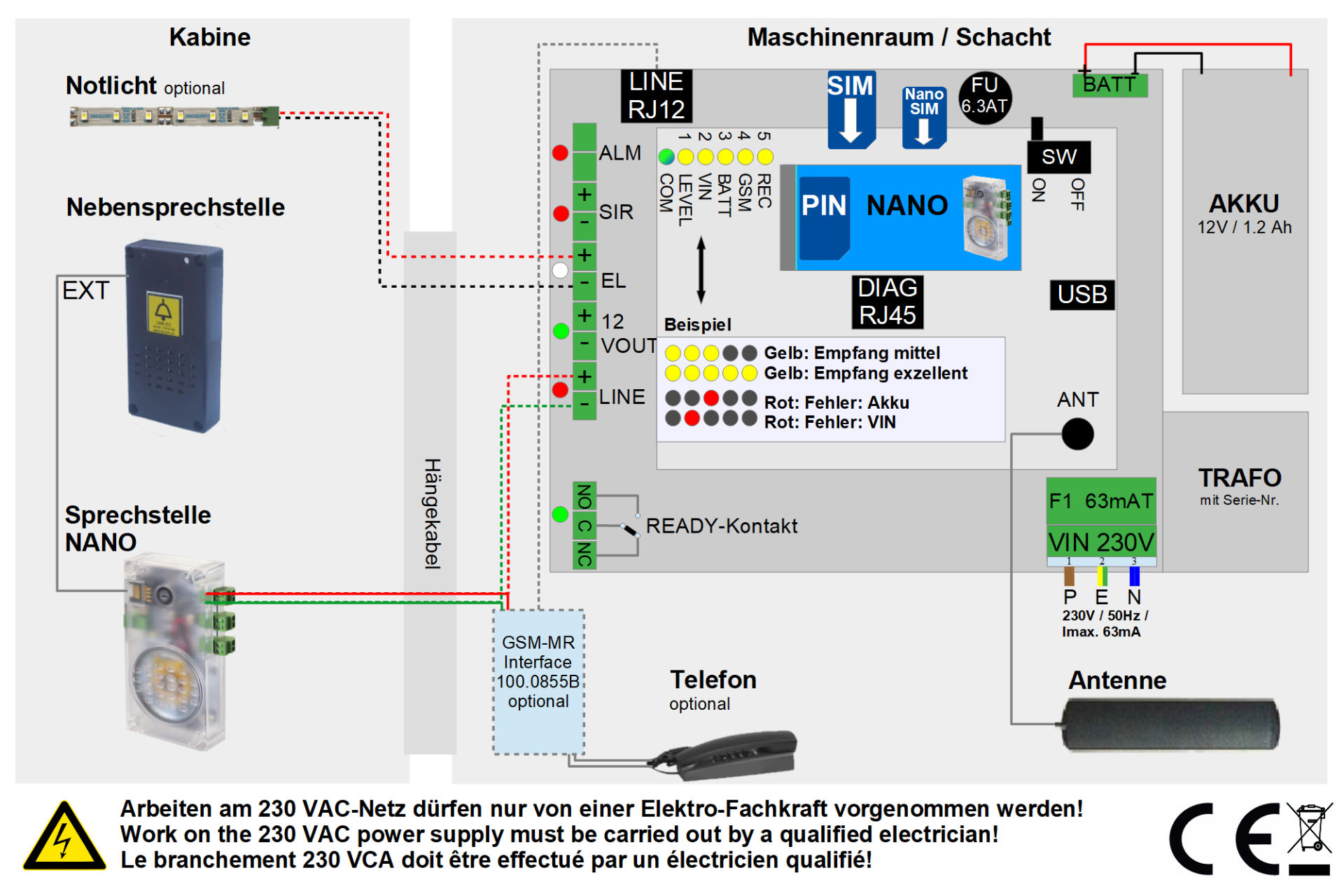

The 2-wire connection between interface and voice station transmits all signals (emergency call buttons, misuse suppression, alarm horn and connection to building management systems), voice connection, the supply of the status lights and an emergency light.
The Nano system can be easily configured via SMS or conveniently with the Leitronic APP or the Leitronic Portal.
The modular design guarantees cost-effective subsequent upgrades in just a few minutes.
IP and DIN version
- The IP version is robust, water-protected and intended for mounting in the elevator shaft
- The DIN version is flexible, compact and intended for mounting in the control cabinet
Support for following networks
- 4G: GSM, UTMS, LTE/VoLTE
- 3G: GSM, UTMS
- 2G: GSM
Standards
EN81-28 and EN81-70
Radio Equipment (RED)
IP version
- Power supply: 230 VAC / 50 Hz / max. 15 W
- Standby: 5 W
- + 2 W during the connection
- + Consumer to 12VOUT
- + Consumer to EL (Not in Light version)
- + Consumer to SIR (Not in Light version)
- + 5 W during battery charging (max)
- Emergency battery: 12 V / 1.2 Ah (100.0880)
- Charging time: 8 h typ.
- Dimension (B x H x T): 182 x 180 x 63 mm
- Casing: ABS, IP67
- Weight: 650 g (without battery)
DIN version
- Power supply: 14.3 VDC +/- 0.15 V
- Standby: 2.5 W
- + 2 W when connected
- + consumer to 12VOUT
- + Consumer to EL (Not in Light version)
- + Consumer to SIR (Not in light version)
- + 5 W during battery charging (max)
- Emergency battery: 12 V / 1.2 Ah (100.0880)
- Charging time: 8 h typ.
- Dimension (B x H x T): 45 x 118 x 138 mm
- Casing: DIN
- Weight: 400 g (without battery)
- such as instructions, schematics, leaflets, etc.
Cabin Intercom stations
Typ | Wasser-geschützt | integrierte Alarmtaste | OUT1 | OUT2 | Bestell-Nr. |
| NANO | 100.0900 | ||||
| NANO | JA | 100.0900EC | |||
| NANO | JA | 100.0901WG | |||
| NANO-EN70 | JA | Hören | Sprechen | 100.0902 | |
| NANO-EN70 | JA | Hören | Sprechen | 100.0903WG | |
| NANO-SIR | JA | NC (Alarm) | NO (Alarm) | 100.0904 | |
| NANO-SIR | JA | NC (Alarm) | NO (Alarm) | 100.0905WG | |
| NANO-K2 | JA | Gebäude- Leitsystem | 100.0906 | ||
| NANO-K2 | JA | Gebäude- Leitsystem | 100.0907WG | ||
| NANO-K3 | JA | Fernwirkung | 100.0908 | ||
| NANO-K3 | JA | Fernwirkung | 100.0909WG |
More accessories
Front panels for microphone units
Retrofit front panels with and without emergency call buttons made of Inox or polycarbonate:
- Surface and flush mounting possible
- Advantage polycarbonate: Emergency light shines through
- Emergency call buttonsAdapter EA-NT-IN
- SNEL retrofit KIT (with hole pattern)
- Hole pattern suggestions for new panels.
Transparent front panel frame
Order no.: 100.0231
Suitable for this:
- Inox front plate EA-TAB | without emergency call button | order no. 100.0220
- Inox front panel EA-TAB-NT | incl. emergency call button RT-42 2M / type XI | order no. 100.0221
- Inox front panel EA-TAB-HK | incl. "Help coming" indicator RA-42 | order no. 100.0222
- Inox front panel EA-TAB-EN72 | incl. intercom button RT-42 2M / type XI | order no. 100.0223
- Emergency light LED chain 10cm | inserted in recess at the bottom or top | order no. 100.0870
- Emergency light LED chain 2x10cm | inserted in recess at bottom and top | order no. 100.0873
LED emergency light 10cm, self-adhesive
LED chain 10cm self-adhesive | suitable for transparent front panel frame, order no.: 100.0231
technical data: 12 V DC +/- 15% / 0.8 W / 52 lm (16 cd 120°)
Dimensions: 117 x 9 x 9 mm (L x W x H)
connections: Plug/screw terminal
Order no.: 100.0870
LED emergency light 2x10cm, self-adhesive
LED emergency light 2x 10cm, self-adhesive | suitable for transparent frame Art. No.: 100.0231
For both recesses of the transparent frame (light at the bottom and top)
Technical data: 12 V DC +/- 15% / 1.6 W / 104 lm (16 cd 120°)
Dimensions: (100+117) x 9 x 9 mm (L x W x H)
Connections: Plug/screw terminal
Order no.: 100.0873
IP67 LED screw
Technical data: 12 V DC +/- 15% / 0.2 W / 4 lm (44 cd 20°)
Drill hole: M8
Cable: 25cm
Order no.: 100.0872
LED module, self-adhesive
Technical data: 12 V DC +/- 15% / 1.2 W / 50 lm
Dimensions: 37 x 32 x 5 mm (L x W x H) screw mounting also possible
Cable: 8 cm between the elements (can be supplied as a chain)
Order no.: 100.0874
EA-LMC70 extension unit
Dimensions: 114 x 58 x 21 mm (L x W x H). B with plug 74mm
EC: incl. integrated emergency call button (NO contact)
Supply voltage: 8.35 V DC
Input for emergency call button
2x indicator lights according to EN81-70
(yellow/green): internal with LED/light conductor, external with light symbols (open collector output)
Order no.: 118.0155
EA-LMC-EC sub-station below and above the cab
Passive extension unit with integrated emergency call button
1x emergency call button (NO contact: integrated or externally connectable)
1x microphone + 1x loudspeaker
(plug-in screw terminals + RJ45 connection)
Dimensions: 114 x 58 x 21 mm (L x W x H). B with plug 74mm
Order no.: 118.0158 with 3m flat cable RJ45
Order no.: 118.0158R with 5m round cable
Adapter board EA-LMK-ETMA-NANO for Schindler control panels
Enables quick and easy conversion of current Schindler control panels with integrated ETMA elevator emergency call system to the NANO system
Order no.: 118.0171
LMK-ORONA
Enables quick and easy conversion of current Orona control panels to the NANO system with original connector/wiring
Order no.: 118.0168
SIM card with 4G / VoLTE roaming* ideal for emergency elevator calls
EU: Foreign providers | *CH: Swisscom (VoLTE), Sunrise, Salt
The Leitronic 4G / VoLTE M2M SIM supports ALL CH networks → best possible coverage
No additional roaming costs, even in neighboring countries
The inclusive services are pooled across all active SIM cards
Leitronic portal for routine monitoring included
Free, competent support via Leitronic Infoline
We are also available by telephone for a consultation
Order no.: M2M-SIM
Power supply
DIN switching power supply EA-ACDC-USV
Operating voltage: 230 VAC +-15%,
Output voltage: 14.3 VDC / 10 W
Order no.: 118.0117
DIN switching power supply EA-DCDC-USV
Operating voltage: 16 to 35 VDC
Output voltage: 14.3 VDC / 10 W
Order no.: 118.0118
DIN switching power supply EA-DCDC-USVi
Operating voltage: 9 to 35 VDC,
Output voltage: 14.3 VDC / 10 W (isolated)
Order no.: 118.0119
12V lead-acid battery
Voltage: 12 V DC
Capacity: 1.2 Ah
Order no.: 100.0880
DIN holder for battery
Order no.: 100.0881
Antenna material
Wall-mounted antenna
Cable 5m SMA
Weatherproof
Order no.: 100.0864
Directional antenna
Cable 5m SMA
10dBm gain
Weatherproof
Order no.: 100.0866
Antenna extension cable
2.5m SMA Bestell-Nr.: 100.0862 |  | |
10m SMA Bestell-Nr.: 100.0863 | | |
5m SMA Bestell-Nr.: 100.0865 | |
Datenmodule für verschiedene Aufzugs-Steuerungen
4xLAN-WIFI-IP for 4G/LTE
Passes on Internet connection of SIM cards.
4 Ethernet ports + 2.4GHz Wifi.
Power supply from 100.08x2BL. IP housing.
Order no.: 100.0840
1xLAN WIFI for 4G/LTE
Passes on the Internet connection of the SIM cards to any devices.
1 Ethernet port + 2.4GHz Wifi
Power supply from 100.08xyBL
Order no.: 100.0842
Data-Modul-DB9
e.g. Newlift DB9
Order no.: 100.0850
Data-Modul-USB
e.g. Böhnke+Partner
USB isolated
Order no.: 100.0851
Machine room communication
MR-Interface
Extension for machine room solution using DTMF-capable wall-mounted telephone
(DIN mounting, plug-in screw terminals + RJ12 connection)
Order no.: 100.0855B
Machine room telephone
incl. 3m connection cable
Order no.: 118.0120
12V-SIR
Alarm siren
Order no.: 100.0020
Easy and cost-effective upgrades of older devices from 2015 and old design delivered until the end of 2014.
Upgrade 2G / 3G to 4G
version from 2015
Upgrade 2G/3G to 4G - IP version Order no.: L462IP-DUAL |  | |
Upgrade 2G/3G to 4G - DIN version | |
Upgrade 2G / 3G to 4G
implementation by the end of 2014
Retro insert consisting of L445 and L416IP-NANO (without housing) |  |
Your benefits summarised:
-
Wiring via only 2 cables
-
-
Cost-effective alternative to the landline network
-
-
Change of supplier possible at any time
-
-
Lift operation during the construction phase
-
-
Remote programming via SMS, APP and online portal
-
Easy Config
This app enables easy setup of Leitronic AG's System NANO emergency call system by generating and sending configuration SMS.
The app offers the following functions:
- Input of configuration details (especially phone numbers) via an intuitive input mask.
- Saving the history of already configured devices.
- Save configuration templates to manage a variety of nano devices.
- Setting device parameters via USB OTG cable (Android only)
Image Gallery App Easy Config
Android version
Image Gallery App Easy Config
